XL-Specialized XL 80 Power Tail
Detailed Specs
Additional Information
XL Power Tail
80,000 LB OVERALL,
CONCENTRATED: 50,000 LB IN 10'
48' OR 53'
102"
9' LONG FULL-WIDTH,
90° SLOPE
49"
16"
86"
36"
25,000 lb AIR RIDE
(2) 25,000 LB NOMINAL,
AXLE SPACING,
HUB PILOT, OUTBOARD DRUMS,
4S2M ABS,
SPRING BRAKES ON 2 AXLES,
AUTO SLACK ADJUSTERS,
AIR DUMP ON BOTH AXLES,
49"
12 1/4" X 7 1/2"
6.75 X 17.5 STEEL RIMS,
245/ 70R/ 17.5 TIRES
Description

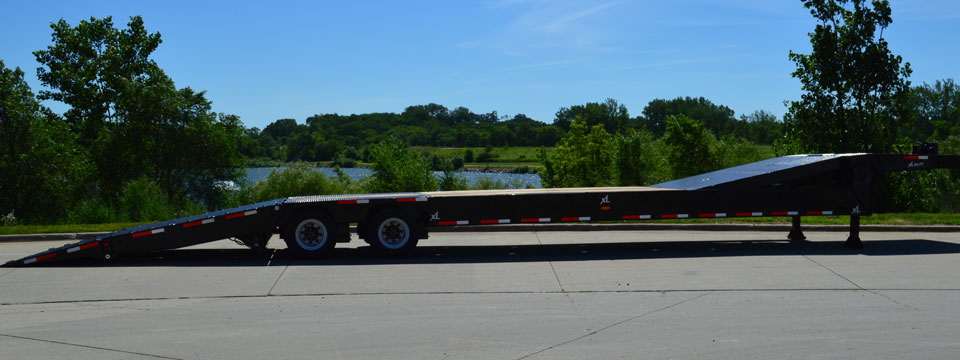

With a load angle of 10 degrees, the hydraulic tail is equipped to easily handle hard- to-load equipment such as man lifts, rollers, forklifts and paving equipment. The tail features a lifting capacity of 25,000 pounds for loads centered on the main platform.
